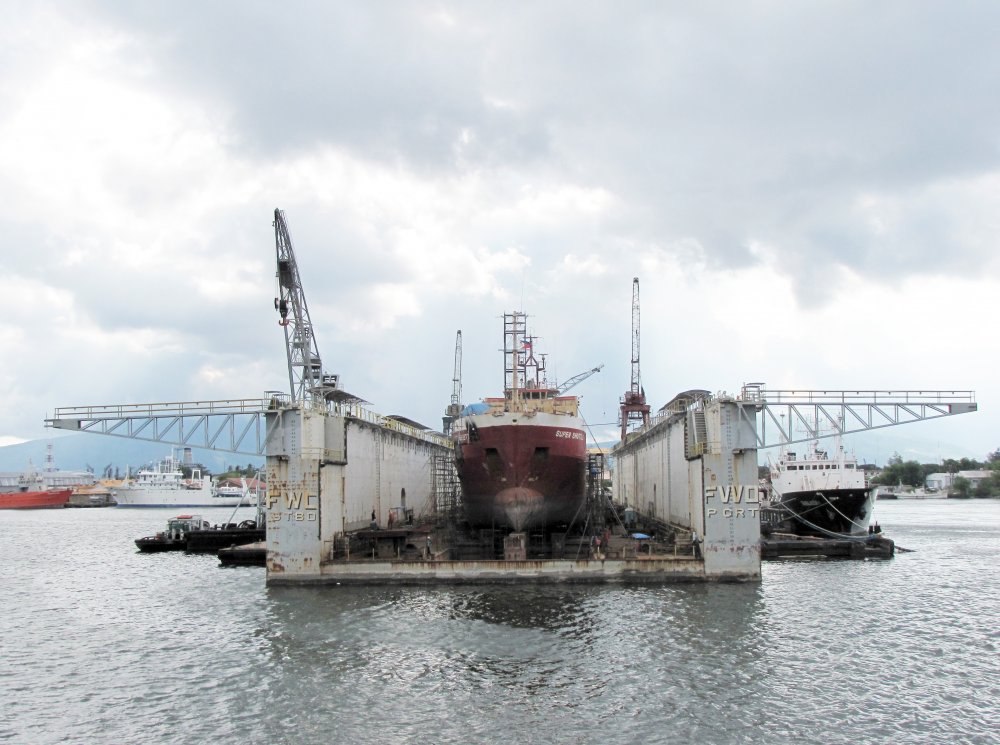

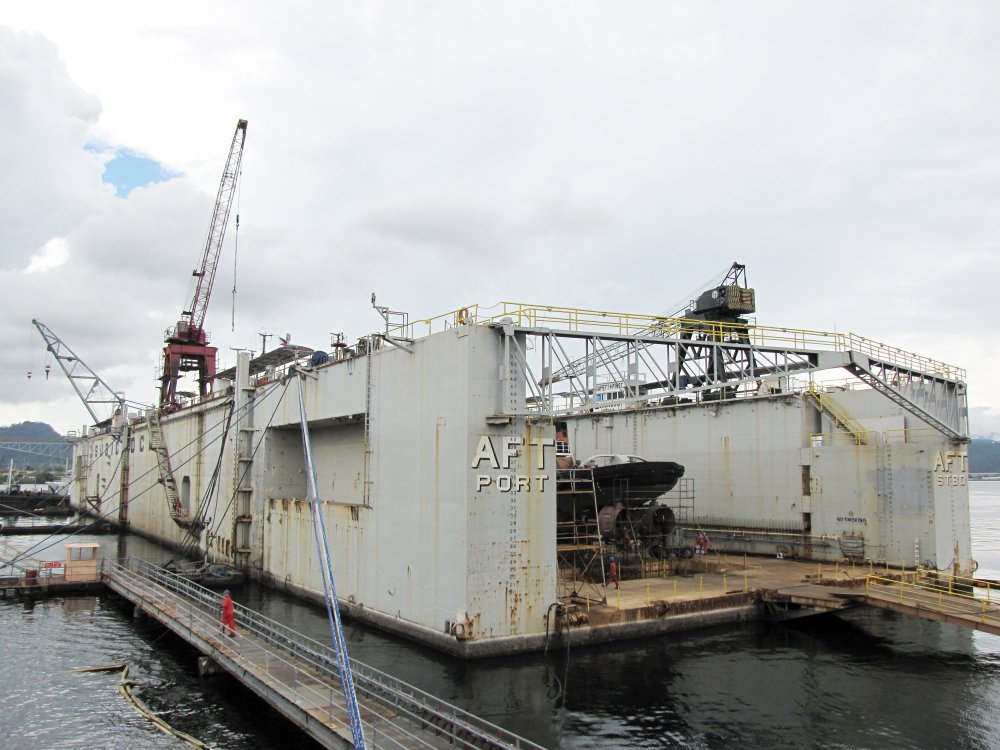

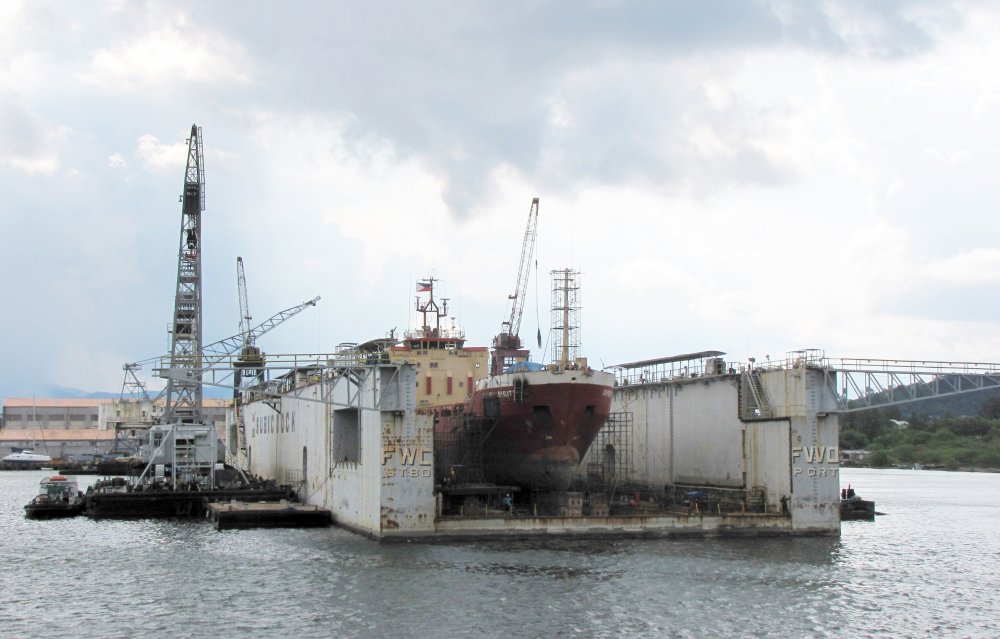

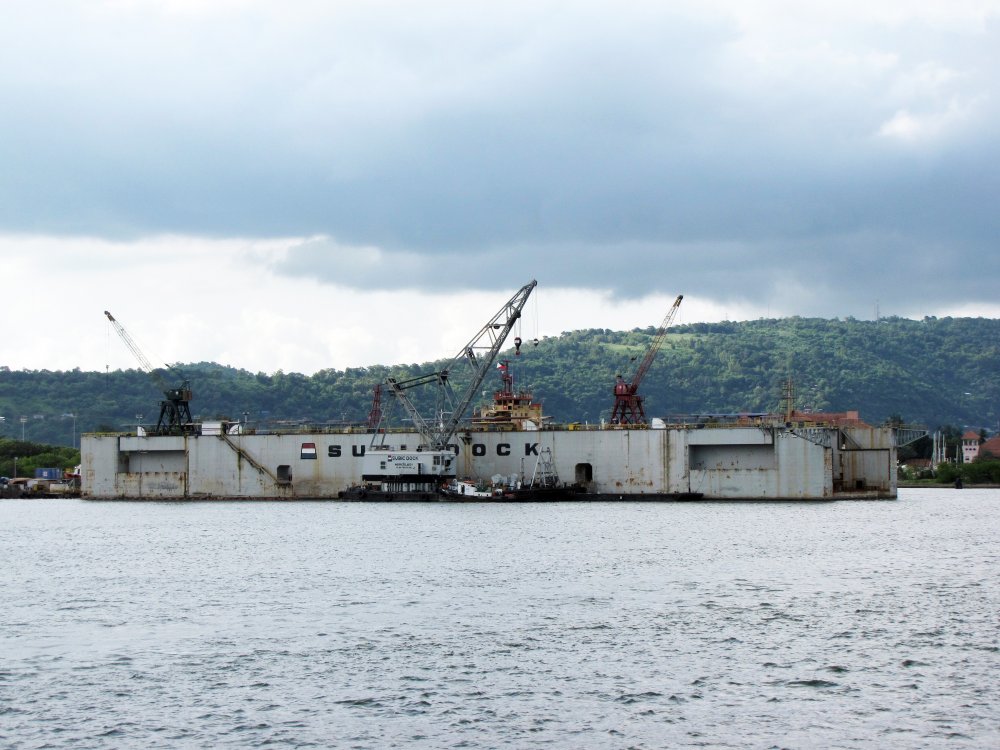

AFDM-5

The AFDM-5 is a trough-type of welded structural steel construction. It is composed of a center section and two end sections, all bolted together. Each section consists of a pontoon and two fixed rectangular sidewalls.

Length of Center Section: 114.60 m;

Capacity: 18,000 tons;

Frame spacing: 2.44 m;

Length of each and section: 26.52 m;

Depth of forward pontoon at centerline of dock: 7.42 m;

Depth of pontoon at centerline of dock: 5.13 m;

Width of sidewall: 4.27 m;

Draft over 1.37 m keel block at normal freeboard of 1.73 m.: 8.74 m;

Minimum freeboard at maximum submergence: 0.99 m;

Docking clearance between fenders: 28.35 m;

Overall height of sidewalls from the side of pontoon: 11.89 m;

Width Inside Wall: 29.26 m.
