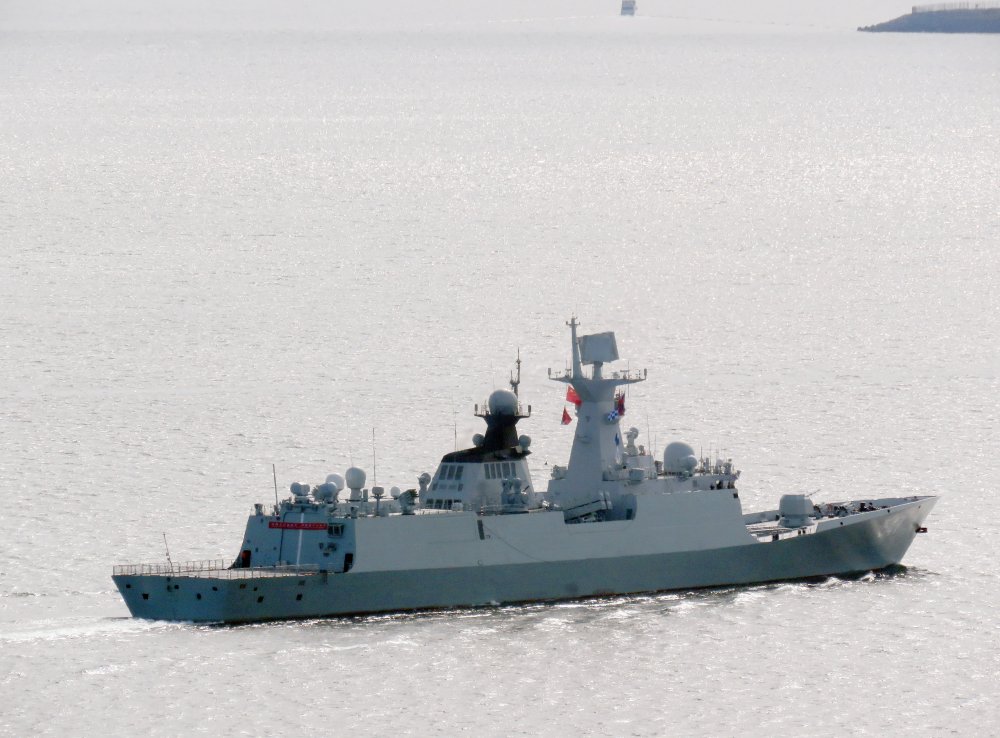

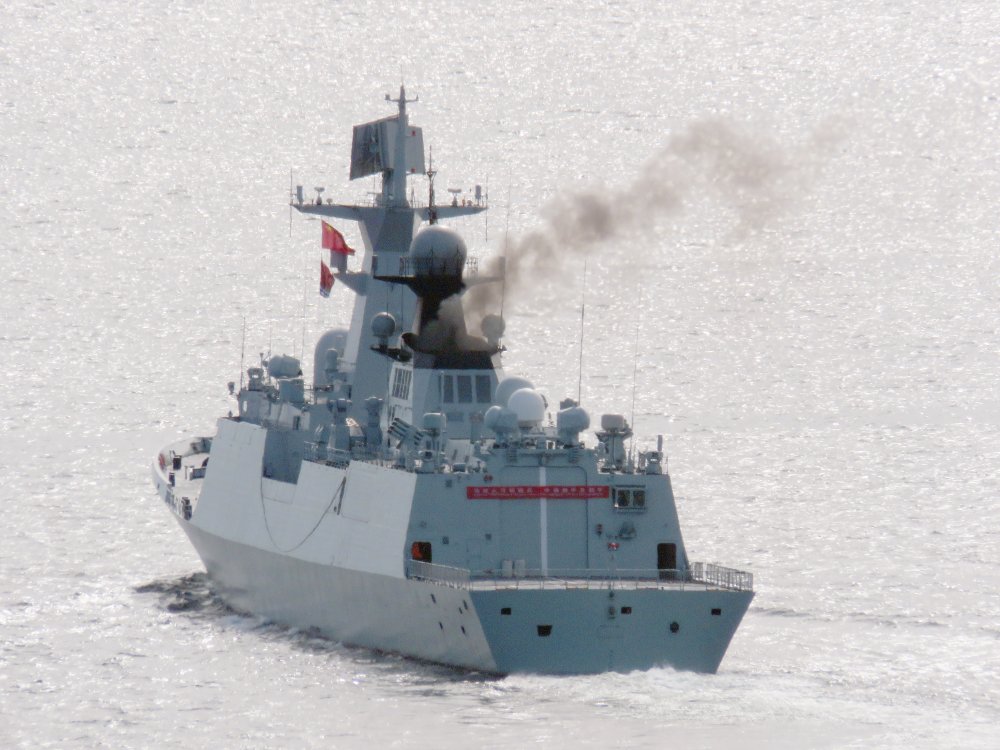

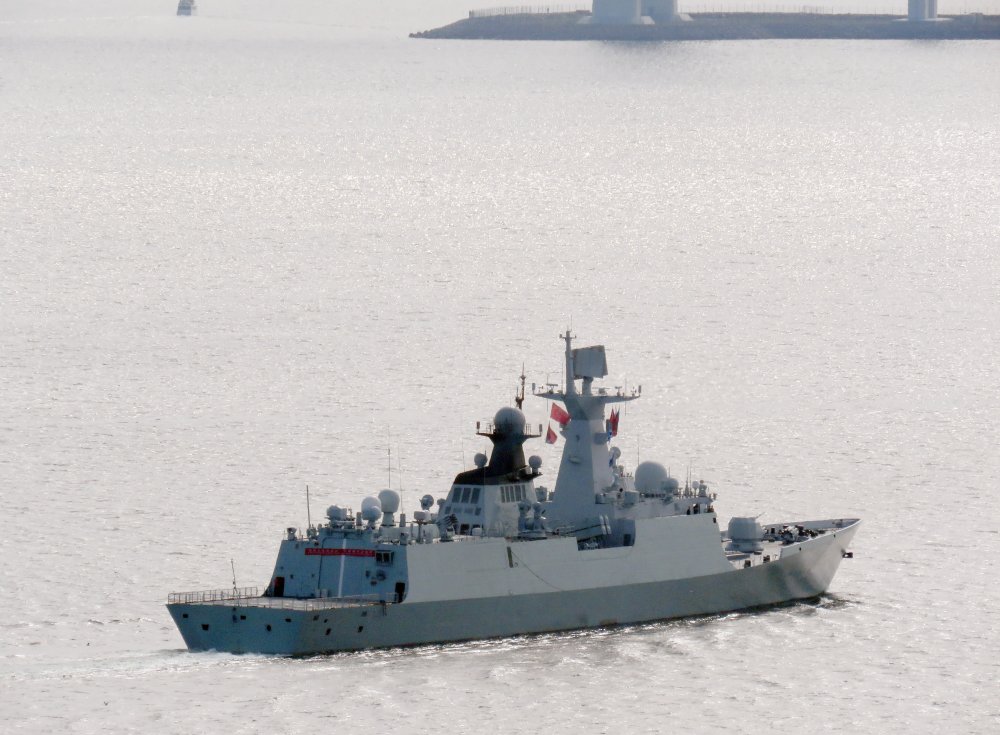

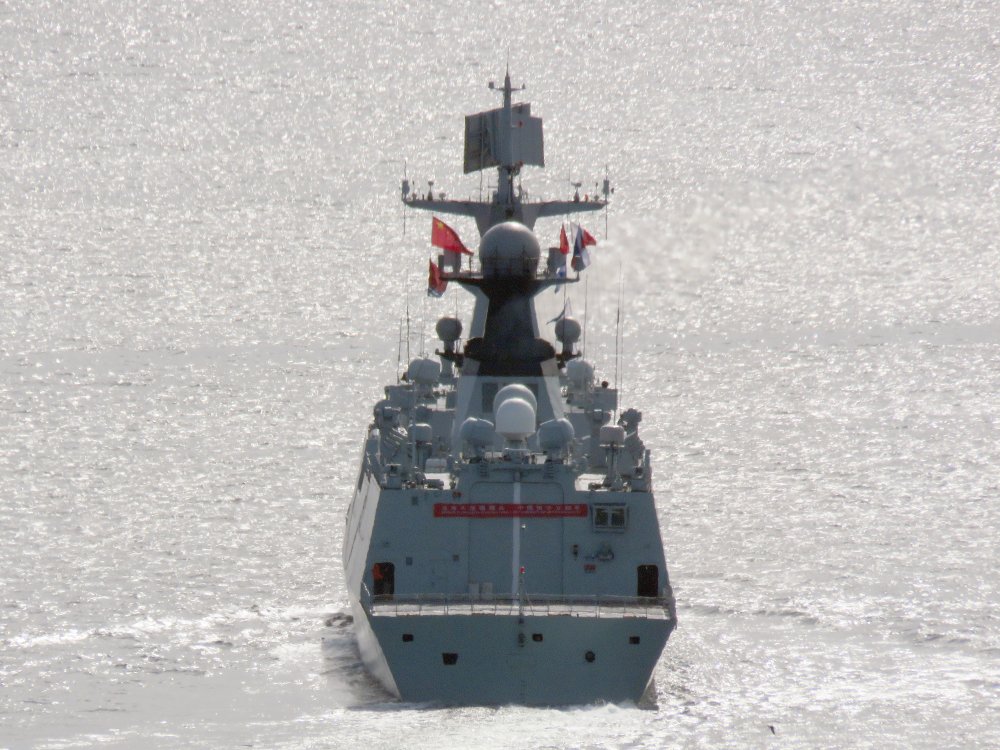

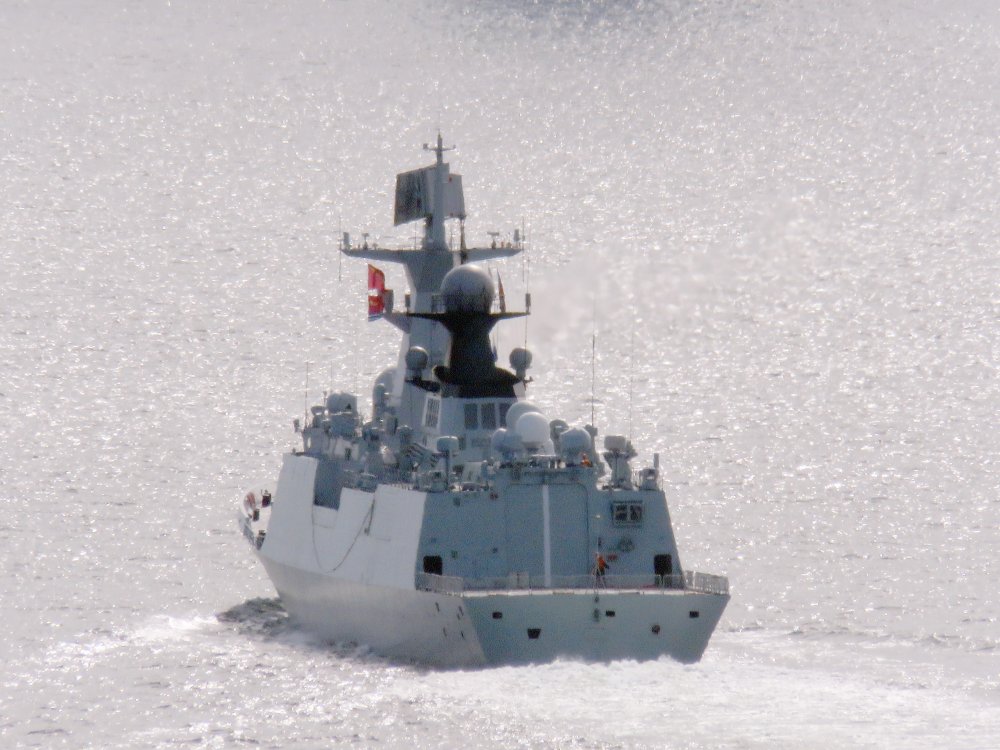

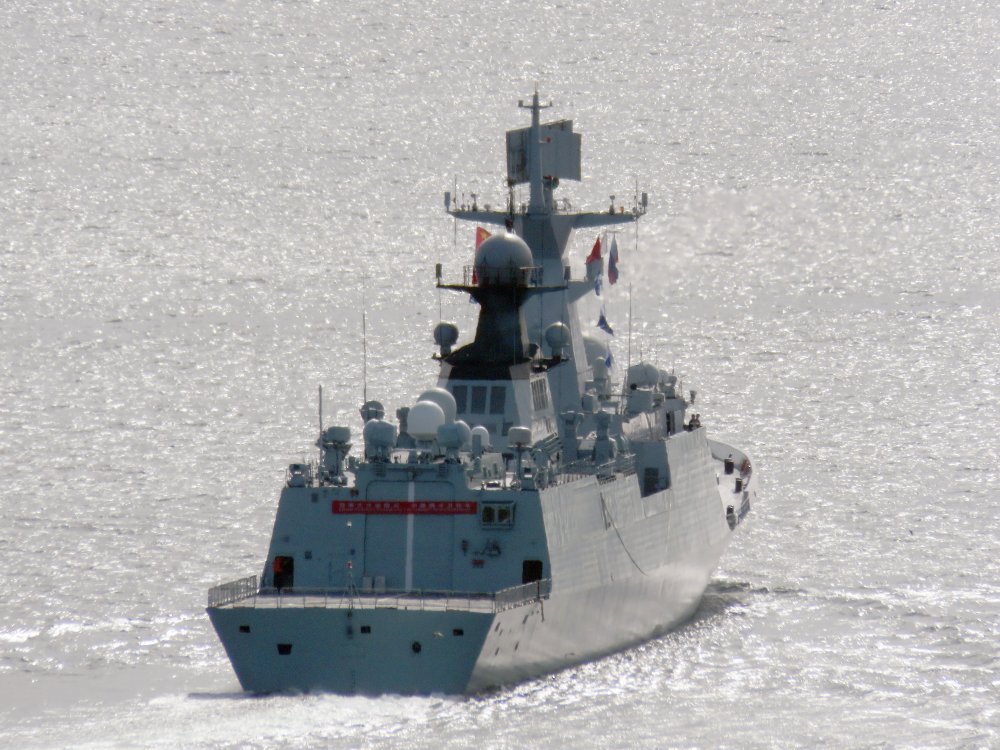

Linyi - 547

Type: 054A frigate

Range: 8,025 nautical miles;
Complement: 165 pers.

Sensors and processing systems:
Type 382 Radar
Type 344 Radar (Mineral-ME Band Stand) OTH target acquisition and SSM fire control radar
4 × Type 345 Radar(MR-90 Front Dome) SAM fire control radars
MR-36A surface search radar, I-band
Type 347G 76 mm gun fire control radar
2 × Racal RM-1290 navigation radars, I-band
MGK-335 medium frequency active/passive sonar system
H/SJG-206 towed array sonar
ZKJ-4B/6 (developed from Thomson-CSF TAVITAC) combat data system
HN-900 Data link (Chinese equivalent of Link 11A/B, to be upgraded)
SNTI-240 SATCOM
AKD5000S Ku band SATCOM

Electronic warfare & decoys:
Type 922-1 radar warning receiver
HZ-100 ECM & ELINT system
Kashtan-3 missile jamming system

Armament:
1 × 32-cell VLS
HQ-16 SAM
Yu-8 anti submarine rocket launcher
2 × 4 C-803 anti-ship / land attack cruise missiles
1 × PJ26 76 mm dual-purpose gun
2 × Type 730 7-barrel 30 mm CIWS guns or Type 1130
2 × 3 324mm Yu-7 ASW torpedo launchers
2 × 6 Type 87 240mm anti-submarine rocket launcher (36 rockets carried)
2 × Type 726-4 18-tube decoy rocket launchers

Aircraft carried: 1 Kamov Ka-28 'Helix' or Harbin Z-9C
Aviation facilities: hangar
